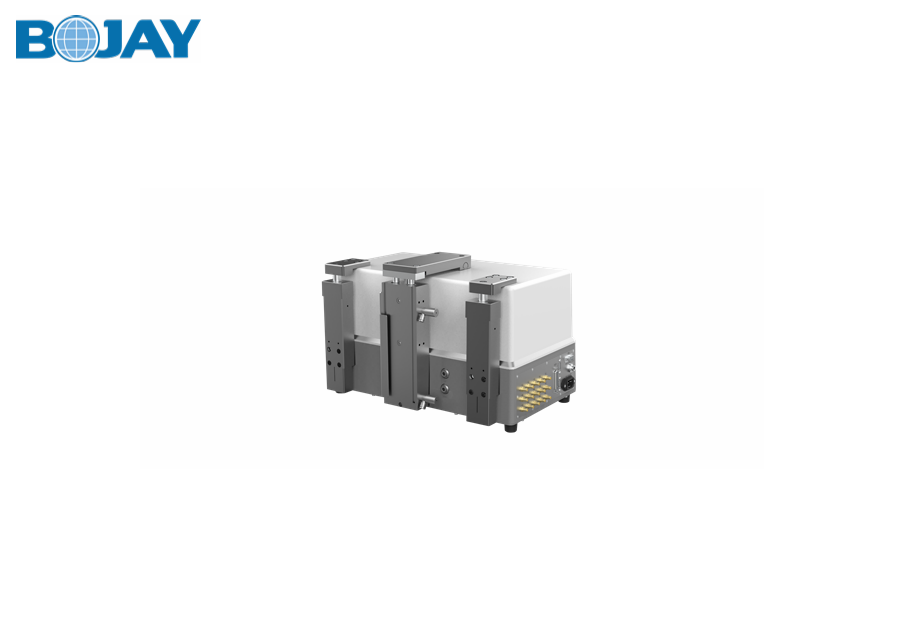

PCBA Test System | BJ-9800
- For consumer electronic devices 4G conductive test environment;
- For GPS, Cellular(up to sub6), BT, WIFI, WIFI6e and UWB, etc
- For mass production application.
Product Information
Main Features：
- This chamber is designed for PCBA RF conductive test, especially for Phone,Earbud and Watch;
- It is a mass production solution for GPS, Cellular(up to sub6), BT, WIFI, WIFI6e and UWB, etc;
- Paring with the modulation fixture, it can support fast switching, automation load/unload, and multi DUTs test;
- The supported DUT size can reach 4".
Mechanical Specification：
| Outer Dimension | 448(W) * 292(D) * 306(H) mm |
| Inner Dimension | 404(W)* 214(D) * 130(H)mm |
| Opening Dimension | 448(W) * 292(D) * 456(H) mm |
| Product Net Weight | approx.21kg |
RF Isolation:
- 700MHz~12GHz >60dB
